R-560C

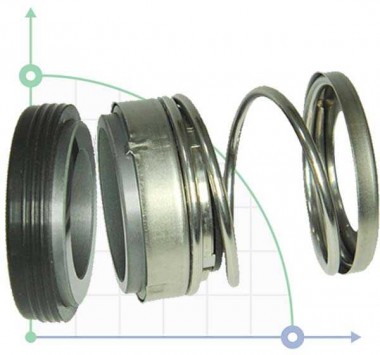

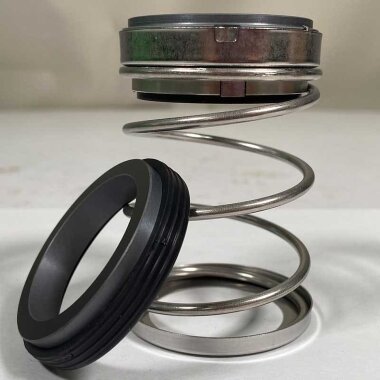

Sello mecánico R-560C
Temperatura: -20 ~ 150 °C
Presión: ≤1.5 MPa
Velocidad: ≤13 m/s
Materiales
- Anillo giratorio: Carbono / SIC
- Anillo fijo: Cerámica/SIC/TC
- Fuelle: NBR /EPDM /VITON.
- Resorte: SS304 / SS316.
- Piezas metálicas: SS304 / SS316.
Sello mecánico R-560C. Aplicable a bombas serie Haigh, Hidrostal, Hilge, Inbeat, INOX, etc. Analógico: sello Burgmann MG920/D1-G50. Sello Crane 2 (N SEAT). Sello Flowserve 200, sello Latty T200, sello Roten RB02, sello Roten 21, sello corto Sealol 43 CE, sello Sterling 212, Vulcan R24.

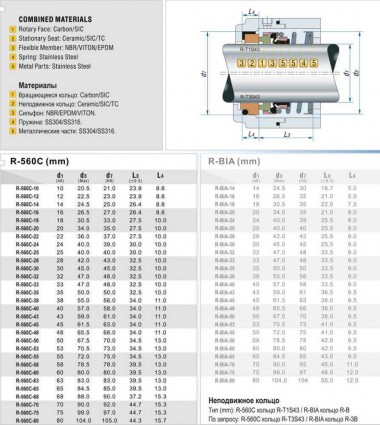

| d1 | d3 | d7 | L3 | L4 |
| 10 | 20.50 | 21.00 | 23.90 | 8.60 |
| 12 | 22.50 | 23.00 | 23.90 | 8.60 |
| 14 | 24.50 | 25.00 | 26.40 | 8.60 |
| 16 | 26.50 | 27.00 | 26.40 | 8.60 |
| 18 | 30.50 | 33.00 | 27.50 | 10.00 |
| 20 | 34.00 | 35.00 | 27.50 | 10.00 |
| 22 | 36.00 | 37.00 | 27.50 | 10.00 |
| 24 | 40.00 | 39.00 | 30.00 | 10.00 |
| 25 | 40.00 | 40.00 | 30.00 | 10.00 |
| 28 | 42.00 | 43.00 | 32.50 | 10.00 |
| 30 | 45.00 | 45.00 | 32.50 | 10.00 |
| 32 | 47.00 | 48.00 | 32.50 | 10.00 |
| 33 | 47.00 | 48.00 | 32.50 | 10.00 |
| 35 | 50.00 | 50.00 | 32.50 | 10.00 |
| 38 | 55.00 | 56.00 | 34.00 | 11.00 |
| 40 | 57.00 | 58.00 | 34.00 | 11.00 |
| 43 | 59.00 | 61.00 | 34.00 | 11.00 |
| 45 | 61.50 | 63.00 | 34.00 | 11.00 |
| 48 | 65.50 | 66.00 | 34.00 | 11.00 |
| 50 | 67.50 | 70.00 | 34.50 | 13.00 |
| 53 | 70.50 | 73.00 | 34.50 | 13.00 |
| 55 | 72.00 | 75.00 | 34.50 | 13.00 |
| 58 | 78.50 | 78.00 | 39.50 | 13.00 |
| 60 | 80.00 | 80.00 | 39.50 | 13.00 |
| 63 | 83.00 | 83.00 | 39.50 | 13.00 |
| 65 | 84.50 | 85.00 | 39.50 | 13.00 |
| 68 | 88.00 | 90.00 | 37.20 | 15.30 |
| 70 | 90.00 | 92.00 | 44.70 | 15.30 |
| 75 | 99.00 | 97.00 | 44.70 | 15.30 |
| 80 | 104.00 | 105.00 | 44.30 | 15.70 |
