R-H12N

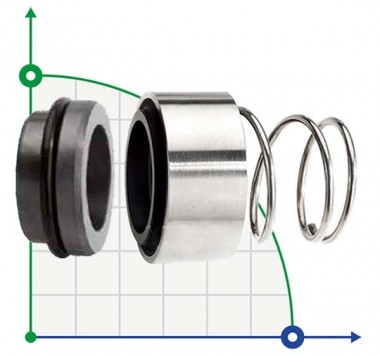

Sello mecánico R-H12N
Temperatura: -20 ~ 220 °C
Presión: ≤1.4 MPa
Velocidad: ≤15 m/s
Materiales
- Anillo giratorio: Carbono/SIC
- Anillo estacionario: Carbono /SUS /SIC /TC
- Fuelle: EPDM/VITON/PTFE
- Resorte: SS304 / SS316.
- Piezas metálicas: SS304 / SS316.
Cierre mecánico simple con muelle cónico R-H12N. Aplicar a bombas Hecker HN 430N, bombas CR, NBG, Grundfos, TP, NKG, CLM, CRN, etc. Analógico: Burgmann H12N/H17GN, sello Flowserve 43D, sello Latty T901D, sello Roplan R62D, Roten, AESSEAL T01DB.

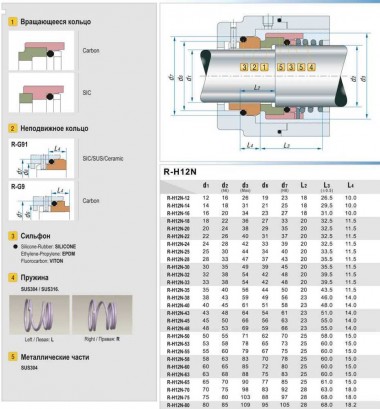

| d1 H6 | d2 | d3 (MÁX.) | d6 | d7 (H8) | L2 | L3 (±0,5) | L4 |
| 12 | 16.00 | 26.00 | 19.00 | 23.00 | 18.00 | 26.50 | 10.00 |
| 14 | 18.00 | 31.00 | 21.00 | 25.00 | 18.00 | 29.50 | 10.00 |
| 16 | 20.00 | 34.00 | 23.00 | 27.00 | 18.00 | 31.00 | 10.00 |
| 18 | 22.00 | 36.00 | 27.00 | 33.00 | 20.00 | 32.50 | 11.50 |
| 20 | 24.00 | 38.00 | 29.00 | 35.00 | 20.00 | 32.50 | 11.50 |
| 22 | 26.00 | 40.00 | 31.00 | 37.00 | 20.00 | 32.50 | 11.50 |
| 24 | 28.00 | 42.00 | 33.00 | 39.00 | 20.00 | 32.50 | 11.50 |
| 25 | 30.00 | 44.00 | 34.00 | 40.00 | 20.00 | 32.50 | 11.50 |
| 28 | 33.00 | 47.00 | 37.00 | 43.00 | 20.00 | 32.50 | 11.50 |
| 30 | 35.00 | 49.00 | 39.00 | 45.00 | 20.00 | 32.50 | 11.50 |
| 32 | 38.00 | 54.00 | 42.00 | 48.00 | 20.00 | 39.50 | 11.50 |
| 33 | 38.00 | 54.00 | 42.00 | 48.00 | 20.00 | 39.50 | 11.50 |
| 35 | 40.00 | 56.00 | 44.00 | 50.00 | 20.00 | 43.50 | 11.50 |
| 38 | 43.00 | 59.00 | 49.00 | 56.00 | 23.00 | 46.00 | 14.00 |
| 40 | 45.00 | 61.00 | 51.00 | 58.00 | 23.00 | 48.00 | 14.00 |
| 43 | 48.00 | 64.00 | 54.00 | 61.00 | 23.00 | 51.00 | 14.00 |
| 45 | 50.00 | 66.00 | 56.00 | 63.00 | 23.00 | 55.00 | 14.00 |
| 48 | 53.00 | 69.00 | 59.00 | 66.00 | 23.00 | 55.00 | 14.00 |
| 50 | 55.00 | 71.00 | 62.00 | 70.00 | 25.00 | 58.00 | 15.00 |
| 53 | 58.00 | 78.00 | 65.00 | 73.00 | 25.00 | 60.00 | 15.00 |
| 55 | 60.00 | 79.00 | 67.00 | 75.00 | 25.00 | 60.00 | 15.00 |
| 58 | 63.00 | 83.00 | 70.00 | 78.00 | 25.00 | 60.00 | 15.00 |
| 60 | 65.00 | 85.00 | 72.00 | 80.00 | 25.00 | 60.00 | 15.00 |
| 63 | 68.00 | 88.00 | 75.00 | 83.00 | 25.00 | 60.00 | 15.00 |
| 65 | 70.00 | 90.00 | 77.00 | 85.00 | 25.00 | 61.00 | 15.00 |
| 70 | 75.00 | 98.00 | 83.00 | 92.00 | 28.00 | 63.00 | 18.00 |
| 75 | 80.00 | 103.00 | 88.00 | 97.00 | 28.00 | 68.00 | 18.00 |
| 80 | 85.00 | 109.00 | 95.00 | 105.00 | 28.00 | 68.00 | 18.20 |
