R-31K/R-31U

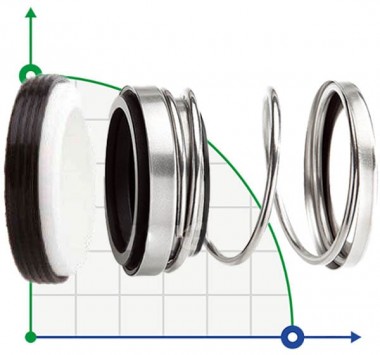

Sello mecánico R-31K/R-31U
Temperatura: -20 ~ 150 °C
Presión: ≤1.5 MPa
Velocidad: ≤13 m/s
Materiales
- Anillo giratorio: Carbono/SIC
- Anillo fijo: Cerámica/SIC/TC
- Fuelle: NBR / EPDM / VITON.
- Resorte: SS304 / SS316.
- Piezas metálicas: SS304 / SS316.
Sello mecánico R-31K/R-31U. Aplicable a bombas serie Haigh, Hidrostal, Hilde, Inbeat, INOX, etc. Analógico: sello Burgmann MG920/D1-G50. Sello Crane 2 (N SEAT), sello Flowserve 200, sello Latty T200, tipo Pac 21/31 (estándar del Reino Unido, estándar de EE. UU.), Roplan RB02, Roten 21, Sterling 212, Vulcan 20.

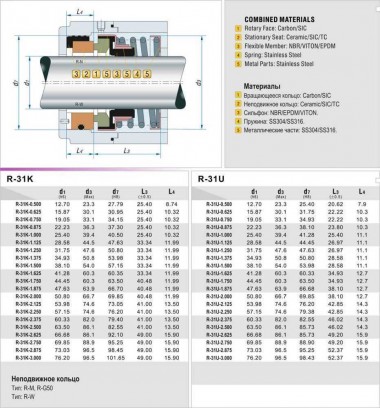

Sello mecánico R-31K
| (pulgada) | d1 (H6) | d3 (máx.) | d7(h8) | L3 (±0,5) | L4 |
| 0.500 | 12.70 | 23.3 | 27.79 | 25.40 | 8.74 |
| 0.625 | 15.87 | 30.1 | 30.95 | 25.40 | 10.32 |
| 0.750 | 19.05 | 33.1 | 34.15 | 25.40 | 10.32 |
| 0.875 | 22.23 | 36.3 | 37.30 | 25.40 | 10.32 |
| 1.000 | 25.40 | 39.4 | 40.50 | 25.40 | 10.32 |
| 1.125 | 28.58 | 44.5 | 47.63 | 33.34 | 11.99 |
| 1.250 | 31.75 | 47.6 | 50.80 | 33.34 | 11.99 |
| 1.375 | 34.93 | 50.8 | 53.98 | 33.34 | 11.99 |
| 1.500 | 38.10 | 54.0 | 57.15 | 33.34 | 11.99 |
| 1.625 | 41.28 | 60.3 | 60.35 | 33.34 | 11.99 |
| 1.750 | 44.45 | 60.3 | 63.50 | 40.48 | 11.99 |
| 1.875 | 47.63 | 63.9 | 66.70 | 40.48 | 11.99 |
| 2.000 | 50.80 | 66.7 | 69.85 | 40.48 | 11.99 |
| 2.125 | 53.98 | 74.6 | 73.05 | 41.00 | 13.50 |
| 2.250 | 57.15 | 74.6 | 76.20 | 41.00 | 13.50 |
| 2.375 | 60.33 | 82.0 | 79.40 | 41.00 | 13.50 |
| 2.500 | 63.50 | 86.1 | 82.55 | 41.00 | 13.50 |
| 2.625 | 66.68 | 86.1 | 92.10 | 49.00 | 15.90 |
| 2.750 | 69.85 | 88,9 | 95.25 | 49.00 | 15.90 |
| 2.875 | 73.03 | 96.5 | 98.45 | 49.00 | 15.90 |
| 3.000 | 76.20 | 96.5 | 101.65 | 49.00 | 15.90 |
Sello mecánico R-31U
| (pulgada) | d1 (H6) | d3 (máx.) | d7(h8) | L3 (±0,5) | L4 |
| 0.500 | 12.70 | 23.3 | 25.40 | 20.62 | 7.9 |
| 0.625 | 15.87 | 30.1 | 31.75 | 22.22 | 10.3 |
| 0.750 | 19.05 | 33.1 | 34.93 | 22.22 | 10.3 |
| 0.875 | 22.23 | 36.3 | 38.10 | 23.80 | 10.3 |
| 1.000 | 25.40 | 39.4 | 41.28 | 25.40 | 11.1 |
| 1.125 | 28.58 | 44.5 | 44.45 | 26.97 | 11.1 |
| 1.250 | 31.75 | 47.6 | 47.63 | 26.97 | 11.1 |
| 1.375 | 34.93 | 50.8 | 50.80 | 28.58 | 11.1 |
| 1.500 | 38.10 | 54.0 | 53.98 | 28.58 | 11.1 |
| 1.625 | 41.28 | 60.3 | 60.33 | 34.93 | 12.7 |
| 1.750 | 44.45 | 60.3 | 63.50 | 34.93 | 12.7 |
| 1.875 | 47.63 | 63,9 | 66.68 | 38.10 | 12.7 |
| 2.000 | 50.80 | 66.7 | 69.85 | 38.10 | 12.7 |
| 2.125 | 53.98 | 74.6 | 76.20 | 42.85 | 14.3 |
| 2.250 | 57.15 | 74.6 | 79.38 | 42.85 | 14.3 |
| 2.375 | 60.33 | 82.0 | 82.55 | 46.02 | 14.3 |
| 2.500 | 63.50 | 86.1 | 85.73 | 46.02 | 14.3 |
| 2.625 | 66.68 | 86.1 | 85.73 | 49.20 | 15.9 |
| 2.750 | 69.85 | 88,9 | 88.90 | 49.20 | 15.9 |
| 2.875 | 73.03 | 96.5 | 95.25 | 52.37 | 15.9 |
| 3.000 | 76.20 | 96.5 | 98.43 | 52.37 | 15.9 |
