R-2100
Sello mecánico R-2100
Temperatura: -20 ~ 140 °C
Presión: ≤1.6 MPa
Velocidad: ≤10 m/s
Materiales
- Anillo giratorio: Carbono/SIC/TC
- Anillo fijo: Cerámica/SIC/TC.
- Fuelle: NBR / EPDM / VITON.
- Resorte: SS304 / SS316.
- Piezas metálicas: SS304 / SS316.
El sello de eje con fuelle de caucho R-2100 es un sello mecánico modular compacto con un solo resorte central y fuelles de elastómero de caucho que mantendrán su equipo funcionando con la máxima eficiencia y rendimiento en todas las condiciones. Se puede utilizar en bombas Gorman-Rupp, Ebara (3M), WILO, ONTS, SNT, ONTS y muchas otras. Sello mecánico equivalente: John Crane 2100, 2100S, 2100K, Flowserve Pac-Seal 140/142/143, ANGA A4/A41, Vulcan Type 14/142/143, Sterling 540/542/543, AESSEAL B09U

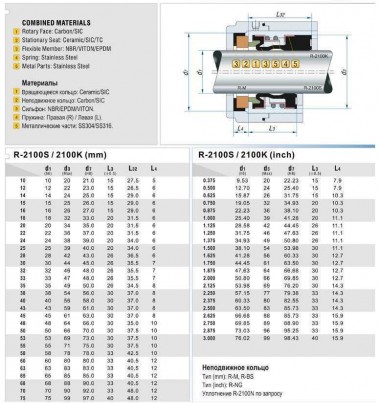

| d1 (H6) | d3 | d7 (máx.) | L3(h8) | L32 (±0,5) | L4 |
| 10 | 20.0 | 21.0 | 15.0 | 27.5 | 5.0 |
| 12 | 22.0 | 23.0 | 15.0 | 26.5 | 6.0 |
| 14 | 24.0 | 25,0 | 15.0 | 29,0 | 6.0 |
| 15 | 25,0 | 26,0 | 15.0 | 29,0 | 6.0 |
| 16 | 26,0 | 27,0 | 15.0 | 29,0 | 6.0 |
| 18 | 32.0 | 33.0 | 20.0 | 31.5 | 6.0 |
| 20 | 34,0 | 35,0 | 20.0 | 31.5 | 6.0 |
| 22 | 36,0 | 37.0 | 20.0 | 31.5 | 6.0 |
| 24 | 38.0 | 39.0 | 20.0 | 34,0 | 6.0 |
| 25 | 39.0 | 40,0 | 20.0 | 34,0 | 6.0 |
| 28 | 42.0 | 43.0 | 26,0 | 36.5 | 6.0 |
| 30 | 44.0 | 45,0 | 26,0 | 35.5 | 7.0 |
| 32 | 46,0 | 48.0 | 26,0 | 35.5 | 7.0 |
| 33 | 47.0 | 48.0 | 26,0 | 35.5 | 7.0 |
| 35 | 49.0 | 50.0 | 26,0 | 34.5 | 8.0 |
| 38 | 54.0 | 56,0 | 30.0 | 37.0 | 8.0 |
| 40 | 56,0 | 58.0 | 30.0 | 37.0 | 8.0 |
| 43 | 59.0 | 61.0 | 30.0 | 37.0 | 8.0 |
| 45 | 61.0 | 63.0 | 30.0 | 37.0 | 8.0 |
| 48 | 64.0 | 66,0 | 30.0 | 35,0 | 10.0 |
| 50 | 66,0 | 70.0 | 30.0 | 37.5 | 10.0 |
| 53 | 69.0 | 73.0 | 30.0 | 37.5 | 10.0 |
| 55 | 71.0 | 75,0 | 30.0 | 37.5 | 10.0 |
| 58 | 78.0 | 78.0 | 33.0 | 42.5 | 10.0 |
| 60 | 80.0 | 80.0 | 33.0 | 40.5 | 12.0 |
| 63 | 83.0 | 83.0 | 33.0 | 40.5 | 12.0 |
| 65 | 85.0 | 85.0 | 33.0 | 40.5 | 12.0 |
| 68 | 88.0 | 90,0 | 33.0 | 40.5 | 12.0 |
| 70 | 90,0 | 92.0 | 33.0 | 48.0 | 12.0 |
| 75 | 99.0 | 97.0 | 40,0 | 48.0 | 12.0 |
Ordenar por:
13668_24__CAR/SIC__EPDM__304
Sello mecánico a la bomba R-2100К 24, CAR/SIC, EPDM, 304

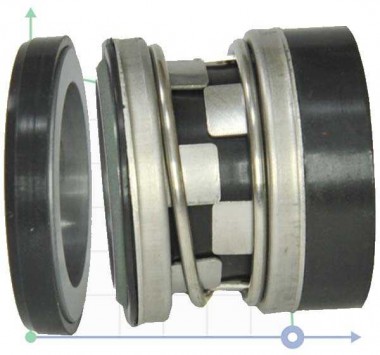

13668_35__CAR/SIC__EPDM__316
Sello mecánico a la bomba R-2100К 35, CAR/SIC, EPDM, 316
13684_40__SIC/SIC__VITON__304
Sello mecánico R-2100S 40, SIC/SIC, VITON, 304
13668_25__SIC/SIC__VITON__304
Sello mecánico a la bomba R-2100К 25, SIC/SIC, VITON, 304
13668_20__CAR/SIC__EPDM__316
Sello mecánico a la bomba R-2100К 20, CAR/SIC, EPDM, 316

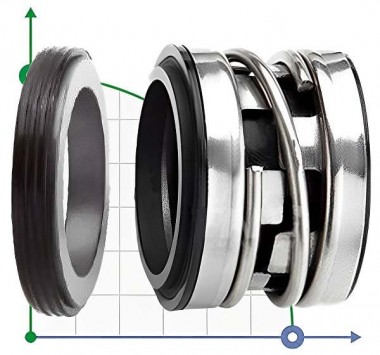

13684_43__CAR/SIC__VITON__304
Sello mecánico R-2100S 43, CAR/SIC, VITON, 304
13668_10__CAR/SIC__EPDM__304
Sello mecánico a la bomba R-2100К 10, CAR/SIC, EPDM, 304
13668_16__CAR/SIC__EPDM__304
Sello mecánico a la bomba R-2100К 16, CAR/SIC, EPDM, 304
13668_33__CAR/SIC__VITON__304
Sello mecánico a la bomba R-2100К 33, CAR/SIC, VITON, 304
13684_14__SIC/SIC__VITON__304__D
Sello mecánico R-2100S 14, SIC/SIC, VITON, 304, D
