Cartridge seal R-ZF 60, SIC/SIC, VITON, 304
Products from the same category
Description

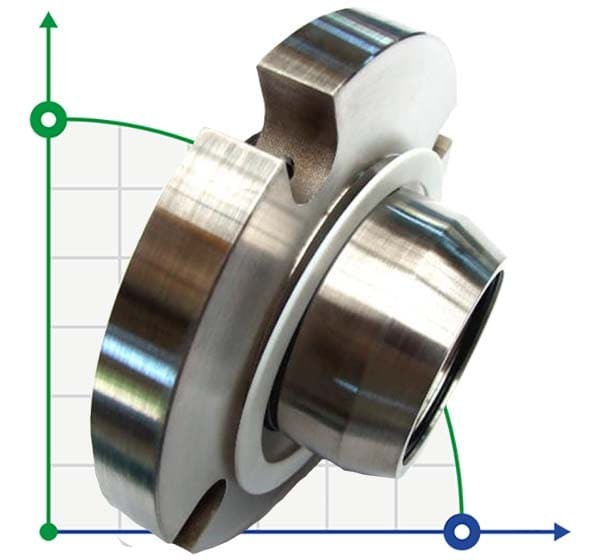

The R-ZF cartridge seal is a series of single seals that do not require external cooling. The seal has no moving parts on the shaft, so it can be installed directly on the shaft, without an additional sleeve. The springs are reliably isolated from the product, which prevents clogging. R-ZF is a reliable, economical and durable seal designed for the paper industry.
Application: Suitable for Ahlstrom / APP / Sulzer / ABS Scan without additional pump modification
35 mm –Sulzer 1, 38 mm – ABS Scan 1, 40 mm– Sulzer 2, 45 mm – Sulzer 2, 48 mm- ABS Scan 2, 50 mm - Sulzer 3, 50 mm – KEST H, 55 mm - Sulzer 3, 60 mm - Sulzer 4, 60 mm - KEST L, 65 mm - Sulzer 4, 65 mm - ABS Scan 3, 70 mm - KEST P, 75 mm - ABS Scan 4, 80 mm - Sulzer 5, 85 mm - Sulzer 5, 85 mm - KEST R, 90 mm - Sulzer 6, 95 mm - Sulzer 6, 100 mm - ABS Scan 5.
Type: Chesterton ZF (Zero Flush seal)
Pressure: ≤2 MPa
Speed: ≤25 м/с
Temperature: ≤+260ºC
Rotary ring: SiC / Carbon / TC
Stationary ring: SiC / TC
Bellows: VITON / Encapsulated Ring / PTFE
Documentation Cartridge seal R-ZF 60, SIC/SIC, VITON, 304
Download instructions, catalog for Cartridge seal R-ZF 60, SIC/SIC, VITON, 304
