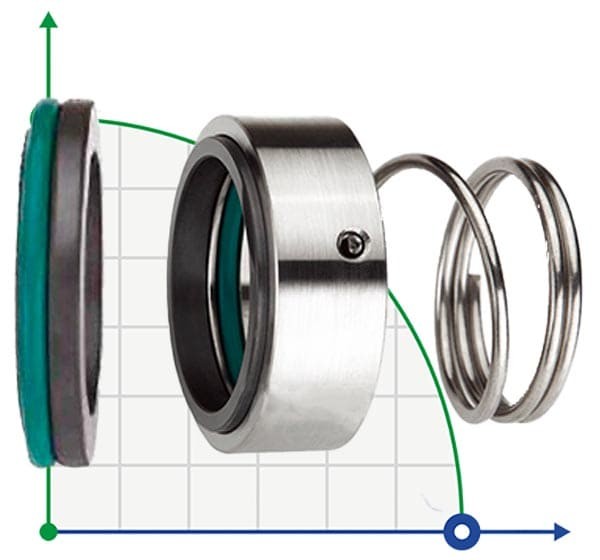

Mechanical seal R-M3N 40, SIC/SIC, EPDM, 304, G13
Products from the same category
13755_38__SS/CAR__VITON__304__ВТ
Mechanical seal R-M3N 38, SS/CAR, VITON, 304, ВТ
$116.13
Pre-order only
13755_40__CAR/SIC__VITON__304__G6
Mechanical seal R-M3N 40, CAR/SIC, VITON, 304, G6
$196.49
Pre-order only
13755_40__L__SS/CAR__VITON__304__G9
Mechanical seal R-M3N 40, L, SS/CAR, VITON, 304, G9
$196.49
In stock
13755_40__SIC/SIC__EPDM__304__G6
Mechanical seal R-M3N 40, SIC/SIC, EPDM, 304, G6
$163.73
Pre-order only
13755_40__SIC/SIC__EPDM__304__G9
Mechanical seal R-M3N 40, SIC/SIC, EPDM, 304, G9
$163.73
Pre-order only
13755_40__SS/CAR__VITON__304__G9
Mechanical seal R-M3N 40, SS/CAR, VITON, 304, G9
$196.49
Pre-order only
Description
Single unbalanced seal with conical spring, unilateral direction of movement. It has a wide range of destinations in the water, sewage, submersible, chemical pumps. It is applied at temperatures from -20 to + 180°C, a pressure up to 1 MPa and the rotation speed to 15 m/sec.
Possible use in pumps: Allweiler, Lowara, Salpeda (N4, NM4), CM and others.
Analog mechanical seals: Burgmann M3N / M3 / M32 / M37G / M37, Flowserve Pac-Seal 38 / 38D / 39, Vulcan Type 8 / 8.DIN / 8D, AESSEAL T01 / T01D / T02, ROTEN 2/22/5 / L4B , ANGA A3, Sealant M211K.
Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.
Documentation Mechanical seal R-M3N 40, SIC/SIC, EPDM, 304, G13
Download instructions, catalog for Mechanical seal R-M3N 40, SIC/SIC, EPDM, 304, G13
