Mechanical seal R-M3N 40, L, CAR/SIC, EPDM, 304, G6
Products from the same category
13755_75__SIC/SIC__VITON__304__G9
Mechanical seal R-M3N 75, SIC/SIC, VITON, 304, G9
$367.61
Pre-order only
13755_38__SIC/SIC__VITON__304__G6
Mechanical seal R-M3N 38, SIC/SIC, VITON, 304, G6
$116.13
In stock
13755_18__CAR/SIC__EPDM__304__G6
Mechanical seal R-M3N 18, CAR/SIC, EPDM, 304, G6
$46.11
Pre-order only
13755_40__L__CAR/SIC__EPDM__304__E0
Mechanical seal R-M3N 40, L, CAR/SIC, EPDM, 304, E0
$163.73
Pre-order only
13755_12__SIC/SIC__EPDM__304__G13
Mechanical seal R-M3N 12, SIC/SIC, EPDM, 304, G13
$31.31
Pre-order only
Description

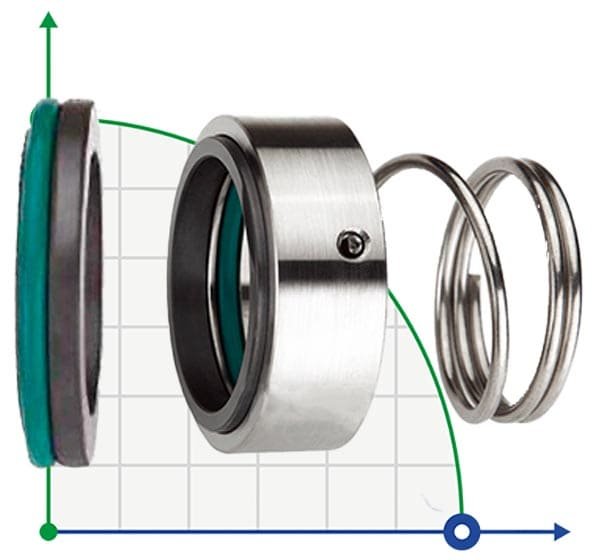

Single unbalanced seal with conical spring, unilateral direction of movement. It has a wide range of destinations in the water, sewage, submersible, chemical pumps. It is applied at temperatures from -20 to + 180°C, a pressure up to 1 MPa and the rotation speed to 15 m/sec.
Possible use in pumps: Allweiler, Lowara, Salpeda (N4, NM4), CM and others.
Analog mechanical seals: Burgmann M3N / M3 / M32 / M37G / M37, Flowserve Pac-Seal 38 / 38D / 39, Vulcan Type 8 / 8.DIN / 8D, AESSEAL T01 / T01D / T02, ROTEN 2/22/5 / L4B , ANGA A3, Sealant M211K.
Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.
Documentation Mechanical seal R-M3N 40, L, CAR/SIC, EPDM, 304, G6
Download instructions, catalog for Mechanical seal R-M3N 40, L, CAR/SIC, EPDM, 304, G6
