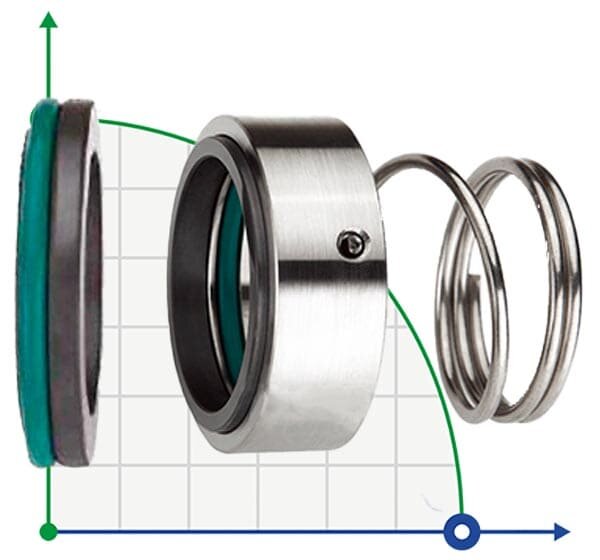

Mechanical seal R-M3N 35, CAR/SIC, EPDM, 304, G9

Mechanical seal R-M3N 35, CAR/SIC, EPDM, 304, G9

13755_35__CAR/SIC__EPDM__304__G9
Price netto:
On request
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
13755_35__CAR/SIC__EPDM__304__G9
We deliver anywhere in the world

Features Mechanical seal R-M3N 35, CAR/SIC, EPDM, 304, G9

Application
ALLWEILER, Calpeda, Ebara, ERDURO, Flowserve (SIHI), Hydro-Vacuum S.A., Inox (CSF Inox), KM, KSB, LOWARA, Pedrollo, Pentax, Pumpenbau Schaffhausen AG (SIHI), Sieva, Simaco, SLW, BShM, CCM
Stationary and rotating face
CAR/SIC
Pressure
1.0 MPa
Analogue for
Aesseal T01, Aesseal T01D, Aesseal T02, Anga A3, Burgmann M32, Burgmann M3N, Flowserve 38, Flowserve 38D, Flowserve 39, Flowserve CRO, Hecker HN 430N, Hermetica М211К, Latty T800, LIDERING LS18/ LS19, Roten 2E, Roten L4B, US SEAL VGME-1, US SEAL VGME-2, US SEAL VGME-3, Vulcan 8, Vulcan 8.DIN
Operating temperature
-20°C +180°C
Rotation velocity
15 m/s
Shaft diameter
35
Seal type
R-M3N
Rubber type
EPDM
Material of metal part
304
All features
Products from the same category
$163.73
$155.55
In stock
13755_75__SIC/SIC__VITON__304__G9
Mechanical seal R-M3N 75, SIC/SIC, VITON, 304, G9
$367.61
$349.23
In stock
13755_40__L__CAR/SIC__EPDM__304__G6
Mechanical seal R-M3N 40, L, CAR/SIC, EPDM, 304, G6
$163.73
$155.55
In stock
13755_12__SIC/SIC__EPDM__304__G13
Mechanical seal R-M3N 12, SIC/SIC, EPDM, 304, G13
$31.31
$29.74
Pre-order only
$31.31
$29.74
Pre-order only
$31.31
$29.74
Pre-order only

Description

Single unbalanced seal with conical spring, unilateral direction of movement. It has a wide range of destinations in the water, sewage, submersible, chemical pumps. It is applied at temperatures from -20 to + 180°C, a pressure up to 1 MPa and the rotation speed to 15 m/sec. Possible use in pumps: Allweiler, Lowara, Salpeda (N4, NM4), CM and others. Analog mechanical seals: Burgmann M3N / M3 / M32 / M37G / M37, Flowserve Pac-Seal 38 / 38D / 39, Vulcan Type 8 / 8.DIN / 8D, AESSEAL T01 / T01D / T02, ROTEN 2/22/5 / L4B , ANGA A3, Sealant M211K. Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.

How to properly measure a mechanical seal
