Mechanical seal R-M3N 30, SS/SIC, VITON, 304, G6

Mechanical seal R-M3N 30, SS/SIC, VITON, 304, G6

13755_30__SS/SIC__VITON__304__G6
$92.33
Price netto:
$87.70
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
13755_30__SS/SIC__VITON__304__G6
We deliver anywhere in the world

Features Mechanical seal R-M3N 30, SS/SIC, VITON, 304, G6

Application
ALLWEILER, Calpeda, Ebara, ERDURO, Flowserve (SIHI), Hydro-Vacuum S.A., Inox (CSF Inox), KM, KSB, LOWARA, Pedrollo, Pentax, Pumpenbau Schaffhausen AG (SIHI), Sieva, Simaco, SLW, BShM, CCM
Stationary and rotating face
SS/SIC
Pressure
1.0 MPa
Analogue for
Aesseal T01, Aesseal T01D, Aesseal T02, Anga A3, Burgmann M32, Burgmann M3N, Flowserve 38, Flowserve 38D, Flowserve 39, Flowserve CRO, Hecker HN 430N, Hermetica М211К, Latty T800, LIDERING LS18/ LS19, Roten 2E, Roten L4B, US SEAL VGME-1, US SEAL VGME-2, US SEAL VGME-3, Vulcan 8, Vulcan 8.DIN
Operating temperature
-20°C +180°C
Rotation velocity
15 m/s
Shaft diameter
30
Seal type
R-M3N
Rubber type
VITON
Material of metal part
304
All features
Products from the same category
13755_30__SIC/SIC__VITON__304__ВТ
Mechanical seal R-M3N 30, SIC/SIC, VITON, 304, ВТ
$92.33
$87.70
In stock
$92.33
$87.70
Pre-order only
13755_30__SS/CAR__VITON__304__ВТ
Mechanical seal R-M3N 30, SS/CAR, VITON, 304, ВТ
$92.33
$87.70
Pre-order only
13755_32__L__SS/CAR__VITON__304__G9
Mechanical seal R-M3N 32, L, SS/CAR, VITON, 304, G9
$98.19
$93.27
In stock
13755_32__SIC/SIC__EPDM__304__G13
Mechanical seal R-M3N 32, SIC/SIC, EPDM, 304, G13
$81.85
$77.75
Pre-order only
$81.85
$77.75
Pre-order only

Description

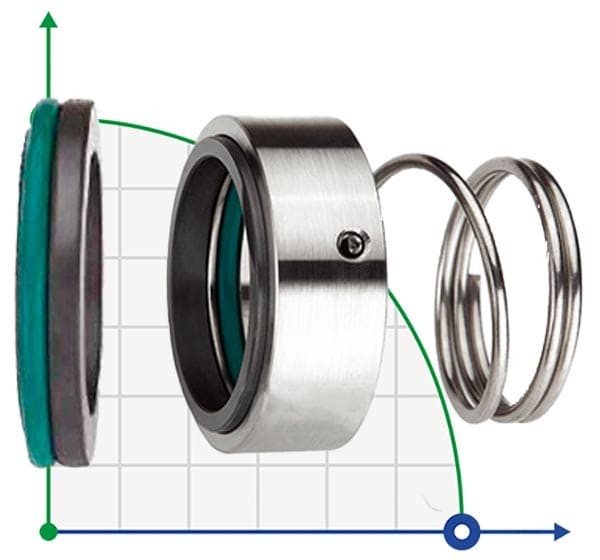

Single unbalanced seal with conical spring, unilateral direction of movement. It has a wide range of destinations in the water, sewage, submersible, chemical pumps. It is applied at temperatures from -20 to + 180°C, a pressure up to 1 MPa and the rotation speed to 15 m/sec. Possible use in pumps: Allweiler, Lowara, Salpeda (N4, NM4), CM and others. Analog mechanical seals: Burgmann M3N / M3 / M32 / M37G / M37, Flowserve Pac-Seal 38 / 38D / 39, Vulcan Type 8 / 8.DIN / 8D, AESSEAL T01 / T01D / T02, ROTEN 2/22/5 / L4B , ANGA A3, Sealant M211K. Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.

Documentation Mechanical seal R-M3N 30, SS/SIC, VITON, 304, G6

Video Mechanical seal R-M3N 30, SS/SIC, VITON, 304, G6

How to properly measure a mechanical seal
