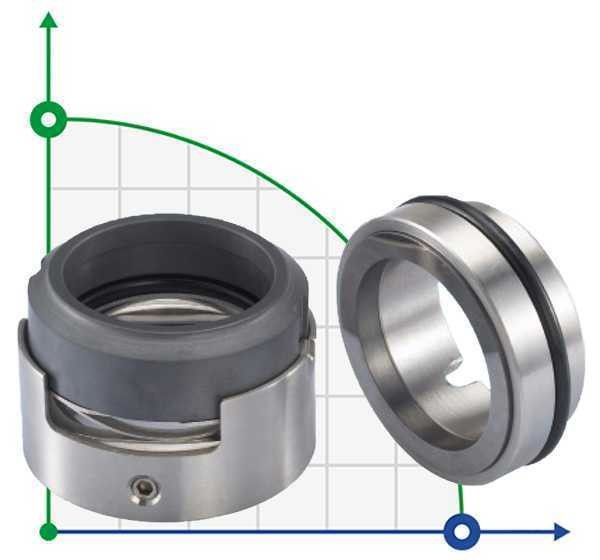

Mechanical seal R-H7N 35, SIC/SIC, VITON, 304, G9
Products from the same category
1022413_28__SIC/SIC__VITON__304__G9
Mechanical seal R-H7N 28, SIC/SIC, VITON, 304, G9
$189.59
Pre-order only
1022413_30__SIC/SIC__VITON__304__G9
Mechanical seal R-H7N 30, SIC/SIC, VITON, 304, G9
$197.29
Pre-order only
1022413_33__SIC/SIC__VITON__304__G9
Mechanical seal R-H7N 33, SIC/SIC, VITON, 304, G9
$201.68
Pre-order only
1022413_38__SIC/SIC__VITON__304__G9
Mechanical seal R-H7N 38, SIC/SIC, VITON, 304, G9
$257.90
Pre-order only
1022413_40__SIC/SIC__VITON__304__G9
Mechanical seal R-H7N 40, SIC/SIC, VITON, 304, G9
$347.20
Pre-order only
1022413_43__SIC/SIC__VITON__304__G9
Mechanical seal R-H7N 43, SIC/SIC, VITON, 304, G9
$373.64
Pre-order only
Description
Mechanical Face Seal R-H7N - Single, balanced, with an arbitrary direction of rotation.
Analogues: AESSEAL W07DMBU / W07DMBU, Burgmann H7N.
Combinations of the counter ring with cooling (G115), a multi-spring unit in the protective sleeve (H 75), with a continuous movable ring of carbon graphite (to be used in an environment of volatile hydrocarbons, H 75 VN), with a coil spring (H76), with integrated impeller ( H75F). Temperature: -50°С ~ 220°С
Pressure: ≤2.5 MPa
Speed: ≤20 m/s
materials:
1- rotating ring: SiC / TC / Carbon.
2- Stationary Ring: Carbon / SiC / TC.
3- bellows: VITON / FEP.
4- Spring: SS304 / SS316.
5- Metal parts: SS304 / SS316
Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.
Documentation Mechanical seal R-H7N 35, SIC/SIC, VITON, 304, G9
Download instructions, catalog for Mechanical seal R-H7N 35, SIC/SIC, VITON, 304, G9
