R-H75

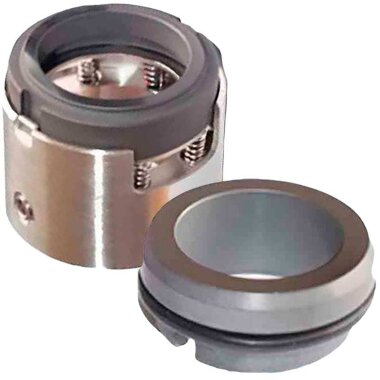

Mechanical seal R-H75

Temperature: -50 ~220 °С

Pressure: ≤2.5 MPa

Speed: ≤20 m/sec

Materials

  • Rotary ring: SiC / TC / Carbon / SS
  • Stationary ring: SiC / TC / Carbon
  • Bellows: VITON / EPDM / FEP
  • Spring: SS304 / SS316
  • Metal parts: SS304 / SS316

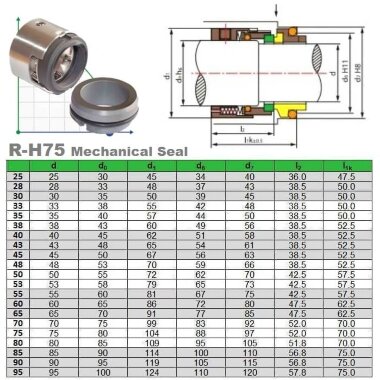

Mechanical mechanical seal R-H75 - for step shafts, independent of the direction of rotation, unloaded. The dimensions correspond to R-H7N, but with multi-spring a block in a protective sleeve. For Shaft diameters from 28 mm to 200 mm.

Type: Burgmann H75, AESSEAL W07DMBU / W07DMB.

Application: in lowara and Vortex pumps. it is also used as a tandem seal, double seal, or in combination with another type of seal. Combinations of a cooling counter-ring (G115) with a solid movable carbon graphite ring are possible (for use in a volatile hydrocarbon environment H 75 VN, in accordance with the requirements for low-emission seals).

Sort by:
Mechanical shaft seal R-H75 43, CAR/SIC, EPDM, 304, G9 — BTS Engineering
Mechanical shaft seal R-H75 43, CAR/SIC, EPDM, 304, G9 — BTS Engineering
-5%
$349.98
Price:
$332.47
In stock
- +
Mechanical shaft seal R-H75 33, CAR/SIC, EPDM, 304, G9 — BTS Engineering
Mechanical shaft seal R-H75 33, CAR/SIC, EPDM, 304, G9 — BTS Engineering
-5%
$197.92
Price:
$188.02
In stock
- +
Mechanical shaft seal R-H75 25, CAR/SIC, EPDM, 304, G9 — BTS Engineering
Mechanical shaft seal R-H75 25, CAR/SIC, EPDM, 304, G9 — BTS Engineering
-4%
$167.58
Price:
$159.21
Pre-order only
- +
Mechanical shaft seal R-H75 28, CAR/SIC, EPDM, 304, G9 — BTS Engineering
Mechanical shaft seal R-H75 28, CAR/SIC, EPDM, 304, G9 — BTS Engineering
-4%
$188.46
Price:
$179.04
Pre-order only
- +
Mechanical shaft seal R-H75 30, CAR/SIC, EPDM, 304, G9 — BTS Engineering
Mechanical shaft seal R-H75 30, CAR/SIC, EPDM, 304, G9 — BTS Engineering
-5%
$193.59
Price:
$183.90
Pre-order only
- +
Mechanical shaft seal R-H75 35, CAR/SIC, EPDM, 304, G9 — BTS Engineering
Mechanical shaft seal R-H75 35, CAR/SIC, EPDM, 304, G9 — BTS Engineering
-4%
$232.81
Price:
$221.17
Pre-order only
- +
Mechanical shaft seal R-H75 38, CAR/SIC, EPDM, 304, G9 — BTS Engineering
Mechanical shaft seal R-H75 38, CAR/SIC, EPDM, 304, G9 — BTS Engineering
-5%
$254.19
Price:
$241.48
Pre-order only
- +
Mechanical shaft seal R-H75 40, CAR/SIC, EPDM, 304, G9 — BTS Engineering
Mechanical shaft seal R-H75 40, CAR/SIC, EPDM, 304, G9 — BTS Engineering
-5%
$325.53
Price:
$309.25
Pre-order only
- +
Mechanical shaft seal R-H75 45, CAR/SIC, EPDM, 304, G9 — BTS Engineering
Mechanical shaft seal R-H75 45, CAR/SIC, EPDM, 304, G9 — BTS Engineering
-4%
$366.23
Price:
$347.92
Pre-order only
- +
Mechanical shaft seal R-H75 48, CAR/SIC, EPDM, 304, G9 — BTS Engineering
Mechanical shaft seal R-H75 48, CAR/SIC, EPDM, 304, G9 — BTS Engineering
-5%
$390.66
Price:
$371.12
Pre-order only
- +
Mechanical shaft seal R-H75 50, CAR/SIC, EPDM, 304, G9 — BTS Engineering
Mechanical shaft seal R-H75 50, CAR/SIC, EPDM, 304, G9 — BTS Engineering
-4%
$406.93
Price:
$386.59
Pre-order only
- +
Mechanical shaft seal R-H75 53, CAR/SIC, EPDM, 304, G9 — BTS Engineering
Mechanical shaft seal R-H75 53, CAR/SIC, EPDM, 304, G9 — BTS Engineering
-5%
$431.31
Price:
$409.74
Pre-order only
- +
Mechanical shaft seal R-H75 55, CAR/SIC, EPDM, 304, G9 — BTS Engineering
Mechanical shaft seal R-H75 55, CAR/SIC, EPDM, 304, G9 — BTS Engineering
-4%
$447.66
Price:
$425.28
Pre-order only
- +
Mechanical shaft seal R-H75 60, CAR/SIC, EPDM, 304, G9 — BTS Engineering
Mechanical shaft seal R-H75 60, CAR/SIC, EPDM, 304, G9 — BTS Engineering
-4%
$488.31
Price:
$463.90
Pre-order only
- +
Mechanical shaft seal R-H75 65, CAR/SIC, EPDM, 304, G9 — BTS Engineering
Mechanical shaft seal R-H75 65, CAR/SIC, EPDM, 304, G9 — BTS Engineering
-4%
$529.01
Price:
$502.57
Pre-order only
- +
Mechanical shaft seal R-H75 70, CAR/SIC, EPDM, 304, G9 — BTS Engineering
Mechanical shaft seal R-H75 70, CAR/SIC, EPDM, 304, G9 — BTS Engineering
-4%
$569.74
Price:
$541.26
Pre-order only
- +
Mechanical shaft seal R-H75 75, CAR/SIC, EPDM, 304, G9 — BTS Engineering
Mechanical shaft seal R-H75 75, CAR/SIC, EPDM, 304, G9 — BTS Engineering
-4%
$610.39
Price:
$579.88
Pre-order only
- +
Mechanical shaft seal R-H75 80, CAR/SIC, EPDM, 304, G9 — BTS Engineering
Mechanical shaft seal R-H75 80, CAR/SIC, EPDM, 304, G9 — BTS Engineering
-4%
$651.09
Price:
$618.55
Pre-order only
- +
Mechanical shaft seal R-H75 85, CAR/SIC, EPDM, 304, G9 — BTS Engineering
Mechanical shaft seal R-H75 85, CAR/SIC, EPDM, 304, G9 — BTS Engineering
-4%
$691.75
Price:
$657.17
Pre-order only
- +
Mechanical shaft seal R-H75 90, CAR/SIC, EPDM, 304, G9 — BTS Engineering
Mechanical shaft seal R-H75 90, CAR/SIC, EPDM, 304, G9 — BTS Engineering
-4%
$732.45
Price:
$695.84
Pre-order only
- +
Mechanical shaft seal R-H75 95, CAR/SIC, EPDM, 304, G9 — BTS Engineering
Mechanical shaft seal R-H75 95, CAR/SIC, EPDM, 304, G9 — BTS Engineering
-5%
$773.15
Price:
$734.48
Pre-order only
- +
Mechanical shaft seal R-H75 50, SS/CAR, VITON, 304, G9 — BTS Engineering
Mechanical shaft seal R-H75 50, SS/CAR, VITON, 304, G9 — BTS Engineering
-4%
$447.61
Price:
$425.24
Pre-order only
- +
