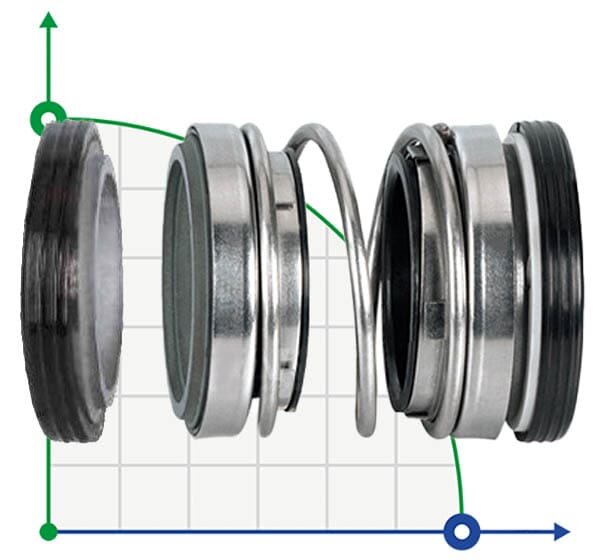

Double mechanical seal R-208 45, SIC/SIC/SIC/SIC, NBR, 304, L11D=69

Double mechanical seal R-208 45, SIC/SIC/SIC/SIC, NBR, 304, L11D=69

1052195
Price netto:
$157
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
1052195
Buy in 1 click
We deliver anywhere in the world

Features Double mechanical seal R-208 45, SIC/SIC/SIC/SIC, NBR, 304, L11D=69

Rate of turn, rpm
3 000
Application
APC, Calpeda, Ebara, Opera, WQ, Zenit, Gnome
Pressure
0,16 MPa
Material of metal part
AISI 304 stainless steel
Operating temperature
-20°C + 80°C
Seal type
R-208
Rubber type
NBR
Stationary and rotating face
SIC/SIC/SIC/SIC
Shaft diameter
45
Height of transport packing, cm
10
All features
Products from the same category

Description

Mechanical seal R-208 - is a double mechanical seal which is used at temperatures ranging from -20 to + 180°C, a pressure of 0 to 5 MPa, and the rotational speed to 3000 rev/min. They are used in drainage, sewage, deep well pumps, submersible electric pumps, pumps WQK series: - WQK35-10-3; - WQK70-10-5, 5; - WQK50-10-4. Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.
