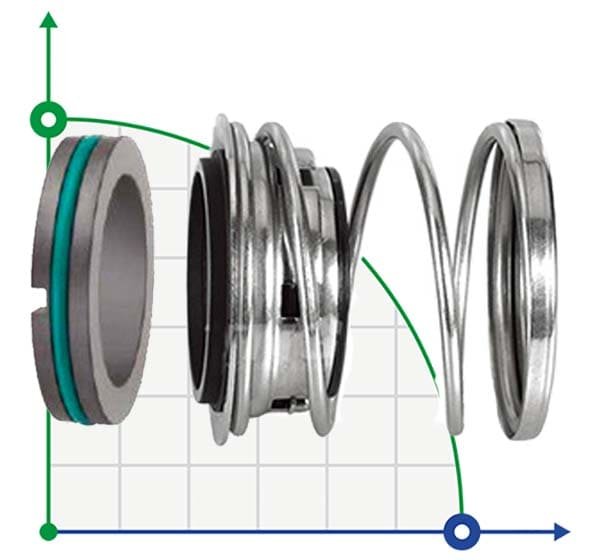

Mechanical seal R-T2 1.1/4, SIC/SIC, VITON, 304

Mechanical seal R-T2 1.1/4, SIC/SIC, VITON, 304

13956_1.1/4__SIC/SIC__VITON__304
Price netto:
$155.19
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
13956_1.1/4__SIC/SIC__VITON__304
We deliver anywhere in the world

Features Mechanical seal R-T2 1.1/4, SIC/SIC, VITON, 304

Application
Cornell, Viking®
Stationary and rotating face
SIC/SIC
Pressure
1.7 MPa
Analogue for
Aesseal P02, Aesseal P02T, Burgmann MG920/D1-G50, Flowserve 52, John Crane 2, Latty T200, LIDERING LRB00, Roplan RB02, Roten 21, Sealol 43 CE Short, US SEAL D, Vulcan A4
Operating temperature
-40 C +200C
Rotation velocity
13 m/s
Shaft diameter
1.1/4
Seal type
R-T2
Rubber type
VITON
Material of metal part
304
All features
Products from the same category
13956_2__CAR/TC__VITON__304__WG
Mechanical seal R-T2 2, CAR/TC, VITON, 304, WG
$248.53
Pre-order only
13956_1.1/8__SIC/SIC__VITON__304
Mechanical seal R-T2 1.1/8, SIC/SIC, VITON, 304
$139.67
Pre-order only
$452.04
In stock
$43.39
Pre-order only
$77.41
Pre-order only
13727_95__SIC/SIC__VITON__304__NG
Mechanical seal R-FBD 95, SIC/SIC, VITON, 304, NG
$358.72
Pre-order only

Description

Mechanical seal R-T2 from -40 to + 120°C, a pressure up to 1 MPa and 7 rotation speed to 13 m/sec. It does not depend on the direction of rotation of the shaft. Has a reliable transmission due to the special design, one hundred and allows you to work under high pressure. Sealing R-T2 is used in pumps, agitators, air compressors, fans and other rotating equipment. Often used in the pulp and paper, petrochemical, food processing, the energy industry. Analogs: John Crane Type2. Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.

Documentation Mechanical seal R-T2 1.1/4, SIC/SIC, VITON, 304

How to properly measure a mechanical seal
