R-TSWE

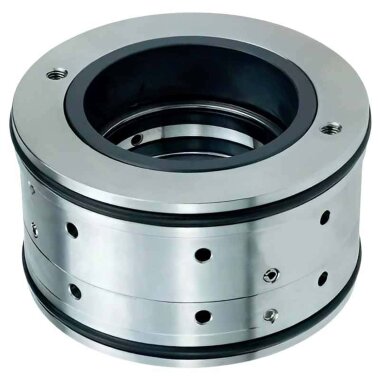

Gleitringdichtung R-TSWE
Temperatur: -20°~200°
Druck: ≤1.5 MPa
Geschwindigkeit: ≤20 m/sec
Werkstoffe
- Rotierenden Ring: SIC/TC
- Fester Ring: SIC
- FALTENBALG: NBR / VITON / EPDM
- Feder: SS304 / SS316
- Metallteile: SS304 / SS316

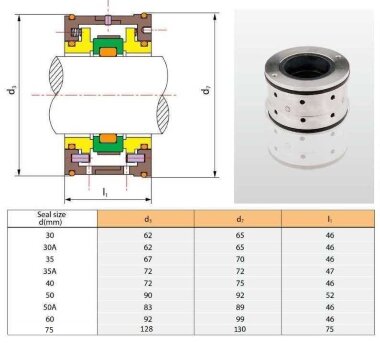

| dh6 (H6) | d3 (Max) | d7 (h8) | L1 (±0.5) |
| 30 | 62 | 65 | 46 |
| 35 | 67 | 70 | 46 |
| 40 | 72 | 75 | 46 |
| 50 | 90 | 92 | 52 |
| 60 | 92 | 99 | 46 |
| 75 | 128 | 130 | 75 |
Sort by:
20658_50__SIC/SIC/SIC/SIC__VITON__304
Gleitringdichtung EMU R-TSWE 50, SIC/SIC/SIC/SIC, VITON, 304
20658_35__A__SIC/SIC/SIC/SIC__VITON__304
Gleitringdichtung EMU R-TSWE 35, A, SIC/SIC/SIC/SIC, VITON, 304
20658_30__A__SIC/SIC/SIC/SIC__VITON__304
Gleitringdichtung EMU R-TSWE 30, A, SIC/SIC/SIC/SIC, VITON, 304
20658_30__SIC/SIC/SIC/SIC__VITON__304
Gleitringdichtung EMU R-TSWE 30, SIC/SIC/SIC/SIC, VITON, 304
20658_35__SIC/SIC/SIC/SIC__VITON__304
Gleitringdichtung EMU R-TSWE 35, SIC/SIC/SIC/SIC, VITON, 304
20658_40__SIC/SIC/SIC/SIC__VITON__304
Gleitringdichtung EMU R-TSWE 40, SIC/SIC/SIC/SIC, VITON, 304
20658_50__A__SIC/SIC/SIC/SIC__VITON__304
Gleitringdichtung EMU R-TSWE 50, A, SIC/SIC/SIC/SIC, VITON, 304
20658_60__SIC/SIC/SIC/SIC__VITON__304
Gleitringdichtung EMU R-TSWE 60, SIC/SIC/SIC/SIC, VITON, 304
