R-H12N
Gleitringdichtung R-H12N
Temperatur: -20°~220°
Druck: ≤1.4 MPa
Geschwindigkeit: ≤15 m/sec
Werkstoffe
- Rotierenden Ring: Carbon/SIC
- Fester Ring: Carbon / SUS / SIC / TC
- FALTENBALG: EPDM/VITON/PTFE
- Feder: SS304 / SS316.
- Metallteile: SS304 / SS316.

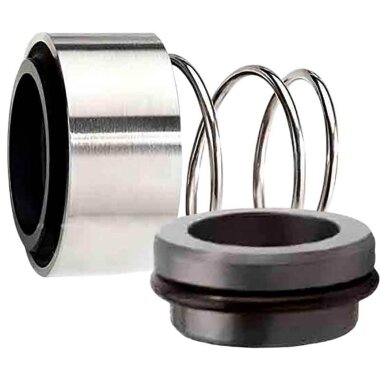

Einzelne Gleitringdichtung mit konischer Feder R-H12N. Anwendbar für Hecker HN 430N-Pumpen, CR-, NBG-, Grundfos-, TP-, NKG-, CLM-, CRN-Pumpen usw. Analog: Burgmann H12N / H17GN, Flowserve 43D-Dichtung, Latty T901D-Dichtung, Roplan R62D-Dichtung, Roten, AESSEAL T01DB.

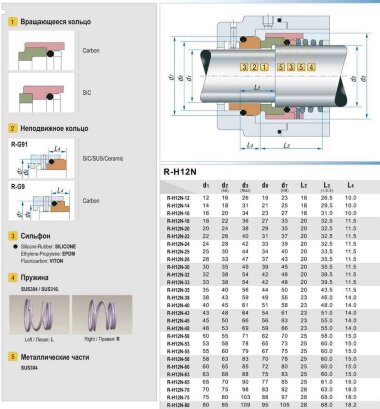

| d1 H6 | d2 | d3 (MAX) | d6 | d7 (H8) | L2 | L3 (±0.5) | L4 |
| 12 | 16,00 | 26,00 | 19,00 | 23,00 | 18,00 | 26,50 | 10,00 |
| 14 | 18,00 | 31,00 | 21,00 | 25,00 | 18,00 | 29,50 | 10,00 |
| 16 | 20,00 | 34,00 | 23,00 | 27,00 | 18,00 | 31,00 | 10,00 |
| 18 | 22,00 | 36,00 | 27,00 | 33,00 | 20,00 | 32,50 | 11,50 |
| 20 | 24,00 | 38,00 | 29,00 | 35,00 | 20,00 | 32,50 | 11,50 |
| 22 | 26,00 | 40,00 | 31,00 | 37,00 | 20,00 | 32,50 | 11,50 |
| 24 | 28,00 | 42,00 | 33,00 | 39,00 | 20,00 | 32,50 | 11,50 |
| 25 | 30,00 | 44,00 | 34,00 | 40,00 | 20,00 | 32,50 | 11,50 |
| 28 | 33,00 | 47,00 | 37,00 | 43,00 | 20,00 | 32,50 | 11,50 |
| 30 | 35,00 | 49,00 | 39,00 | 45,00 | 20,00 | 32,50 | 11,50 |
| 32 | 38,00 | 54,00 | 42,00 | 48,00 | 20,00 | 39,50 | 11,50 |
| 33 | 38,00 | 54,00 | 42,00 | 48,00 | 20,00 | 39,50 | 11,50 |
| 35 | 40,00 | 56,00 | 44,00 | 50,00 | 20,00 | 43,50 | 11,50 |
| 38 | 43,00 | 59,00 | 49,00 | 56,00 | 23,00 | 46,00 | 14,00 |
| 40 | 45,00 | 61,00 | 51,00 | 58,00 | 23,00 | 48,00 | 14,00 |
| 43 | 48,00 | 64,00 | 54,00 | 61,00 | 23,00 | 51,00 | 14,00 |
| 45 | 50,00 | 66,00 | 56,00 | 63,00 | 23,00 | 55,00 | 14,00 |
| 48 | 53,00 | 69,00 | 59,00 | 66,00 | 23,00 | 55,00 | 14,00 |
| 50 | 55,00 | 71,00 | 62,00 | 70,00 | 25,00 | 58,00 | 15,00 |
| 53 | 58,00 | 78,00 | 65,00 | 73,00 | 25,00 | 60,00 | 15,00 |
| 55 | 60,00 | 79,00 | 67,00 | 75,00 | 25,00 | 60,00 | 15,00 |
| 58 | 63,00 | 83,00 | 70,00 | 78,00 | 25,00 | 60,00 | 15,00 |
| 60 | 65,00 | 85,00 | 72,00 | 80,00 | 25,00 | 60,00 | 15,00 |
| 63 | 68,00 | 88,00 | 75,00 | 83,00 | 25,00 | 60,00 | 15,00 |
| 65 | 70,00 | 90,00 | 77,00 | 85,00 | 25,00 | 61,00 | 15,00 |
| 70 | 75,00 | 98,00 | 83,00 | 92,00 | 28,00 | 63,00 | 18,00 |
| 75 | 80,00 | 103,00 | 88,00 | 97,00 | 28,00 | 68,00 | 18,00 |
| 80 | 85,00 | 109,00 | 95,00 | 105,00 | 28,00 | 68,00 | 18,20 |
