R-HG204/R-HG204B
Uszczelnienie mechaniczne R-HG204/R-HG204B
Temperatura: -20°~200°
Ciśnienie: ≤0.6 MPa
Prędkość: ≤500 obr/min
Materiał
- Obrotowy pierścień: SIC/TC/Carbon
- Stały Pierścień: Carbon/TC
- Mieszek: EPDM / VITON
- Sprężyna: SS304/ SS316
- Części metalowe: SS304/ SS316
Pojedyncze uszczelnienie mechaniczne R-HG204. Dotyczy pomp z serii Alfa Laval, APV, Calpeda, Inoxpa, KSB, Lowara, Grundfos, Hilge, Ebara. Analogi: Burgmann, John Crane, Roten, AESSEAL, Anga, Vulcan, Lishing, DIMER

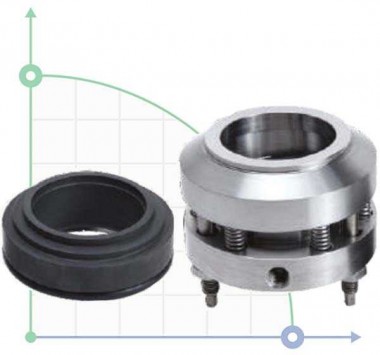

Uszczelnienie mechaniczne R-HG204

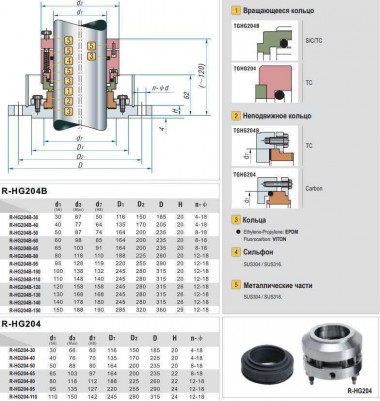

| d1 (H6) | d3 (Max) | d7 (h8) | D1 (±0.5) | D2 | D (h8) | H | n-4 |
| 30 | 66,00 | 60,00 | 116,00 | 150,00 | 185,00 | 20,00 | 4-18 |
| 40 | 76,00 | 70,00 | 135,00 | 170,00 | 225,00 | 20,00 | 4-18 |
| 50 | 88,00 | 80,00 | 164,00 | 200,00 | 235,00 | 20,00 | 8-18 |
| 65 | 103,00 | 97,00 | 164,00 | 200,00 | 235,00 | 22,00 | 8-18 |
| 80 | 118,00 | 112,00 | 188,00 | 225,00 | 260,00 | 22,00 | 12-18 |
| 95 | 135,00 | 127,00 | 220,00 | 225,00 | 260,00 | 24,00 | 12-18 |
| 110 | 150,00 | 142,00 | 245,00 | 280,00 | 315,00 | 24,00 | 12-18 |

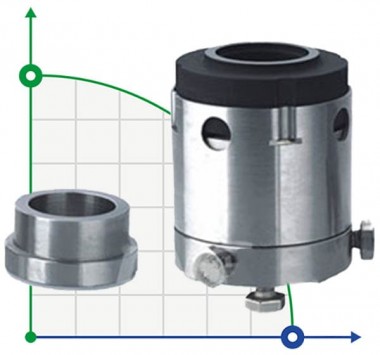

Uszczelnienie mechaniczne R-HG204B
| d1 (H6) | d3 (Max) | d7 (h8) | D1 (±0.5) | D2 | D (h8) | H | n-4 |
| 30 | 67 | 50 | 116 | 150 | 185 | 20 | 4-18 |
| 40 | 77 | 64 | 135 | 170 | 205 | 20 | 4-18 |
| 50 | 87 | 74 | 164 | 200 | 235 | 20 | 8-18 |
| 60 | 98 | 85 | 164 | 200 | 235 | 20 | 8-18 |
| 65 | 103 | 91 | 164 | 200 | 235 | 20 | 8-18 |
| 80 | 118 | 110 | 188 | 225 | 260 | 20 | 12-18 |
| 95 | 128 | 119 | 220 | 255 | 290 | 20 | 12-18 |
| 100 | 138 | 132 | 245 | 280 | 315 | 20 | 12-18 |
| 110 | 148 | 140 | 245 | 280 | 315 | 20 | 12-18 |
| 120 | 158 | 158 | 245 | 280 | 315 | 26 | 12-18 |
| 130 | 168 | 168 | 245 | 280 | 315 | 26 | 12-18 |
| 140 | 178 | 180 | 245 | 280 | 315 | 26 | 12-18 |
| 150 | 188 | 190 | 285 | 320 | 360 | 29 | 12-18 |
