R-BT-RN3/R-BT-RN3.NU
Garniture mécanique R-BT-RN3/R-BT-RN3.NU
Température: -20 ~ 180 °C
Pression: ≤1.0 MPa
Vitesse: ≤15 m/s
Matériaux
- Anneau rotatif: SUS/SIC/TC
- Anneau stationnaire: Carbone/SIC/TC
- Soufflets: NBR / EPDM / VITON.
- Ressort: SS304 / SS316.
- Pièces métalliques: SS304 / SS316.
Garniture mécanique à ressort conique R-BT-RN3 /R-BT-RN3.NU. Il est utilisé dans les pompes centrifuges, les mélangeurs et autres équipements, y compris les mécanismes rotatifs pour l'eau et les eaux de drainage.

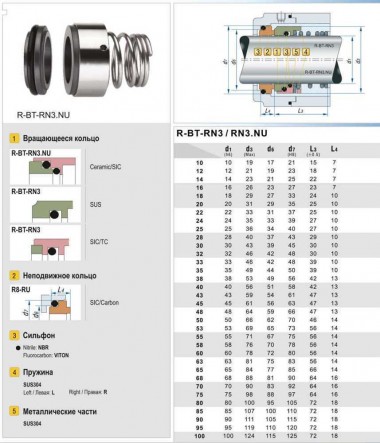

| d1 (H6) | d3 (maximum) | d6(h8) | d7 (±0,5) | L3 | L4(h8) |
| 10 | 19 | 17 | 21 | 15 | 7 |
| 12 | 21 | 19 | 23 | 18 | 7 |
| 14 | 23 | 21 | 25 | 22 | 7 |
| 16 | 26 | 23 | 27 | 23 | 7 |
| 18 | 29 | 27 | 33 | 24 | 10 |
| 20 | 31 | 29 | 35 | 25 | 10 |
| 22 | 33 | 31 | 37 | 25 | 10 |
| 24 | 35 | 33 | 39 | 27 | 10 |
| 25 | 36 | 34 | 40 | 27 | 10 |
| 28 | 40 | 37 | 43 | 29 | 10 |
| 30 | 43 | 39 | 45 | 30 | 10 |
| 32 | 46 | 42 | 48 | 30 | 10 |
| 33 | 46 | 42 | 48 | 39 | 10 |
| 35 | 49 | 44 | 50 | 39 | 10 |
| 38 | 53 | 49 | 56 | 42 | 13 |
| 40 | 56 | 51 | 58 | 42 | 13 |
| 43 | 59 | 54 | 61 | 47 | 13 |
| 45 | 61 | 56 | 63 | 47 | 13 |
| 48 | 64 | 59 | 66 | 47 | 13 |
| 50 | 66 | 62 | 70 | 46 | 14 |
| 53 | 69 | 65 | 73 | 56 | 14 |
| 55 | 71 | 67 | 75 | 56 | 14 |
| 58 | 76 | 70 | 78 | 56 | 14 |
| 60 | 78 | 72 | 80 | 56 | 14 |
| 63 | 81 | 75 | 83 | 56 | 14 |
| 65 | 84 | 77 | 85 | 66 | 14 |
| 68 | 88 | 81 | 90 | 64 | 16 |
| 70 | 90 | 83 | 92 | 64 | 16 |
| 75 | 98 | 88 | 97 | 64 | 16 |
| 80 | 100 | 95 | 105 | 72 | 18 |
| 85 | 107 | 100 | 110 | 72 | 18 |
| 90 | 111 | 105 | 115 | 72 | 18 |
| 95 | 119 | 110 | 120 | 72 | 18 |
| 100 | 124 | 115 | 125 | 72 | 18 |
Sort by:
-5%
13721_22__CAR/SIC__EPDM__304
Garniture mécanique R-BT-RN3.NU 22, CAR/SIC, EPDM, 304
-5%
-5%
13721_28__SIC/SIC__EPDM__304
Garniture mécanique R-BT-RN3.NU 28, SIC/SIC, EPDM, 304
-5%
-5%
13721_22__P__SIC/CAR__VITON__304
Garniture mécanique R-BT-RN3.NU 22, P, SIC/CAR, VITON, 304
-5%
13721_22__SIC/SIC__EPDM__304__CL
Garniture mécanique R-BT-RN3.NU 22, SIC/SIC, EPDM, 304, CL
-5%
-5%
-5%
13720_28__SIC/SIC__VITON__304
Garniture mécanique R-BT-RN3 28, SIC/SIC, VITON, 304
-5%
-5%
13721_22__SIC/SIC__VITON__304__CL
Garniture mécanique R-BT-RN3.NU 22, SIC/SIC, VITON, 304, CL
-5%
-5%
13720_28__SIC/SIC__VITON__304__CL
Garniture mécanique R-BT-RN3 28, SIC/SIC, VITON, 304, CL
-4%
13721_55__SIC/SIC__VITON__304

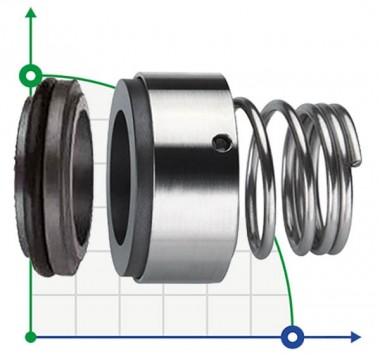

Garniture mécanique R-BT-RN3.NU 55, SIC/SIC, VITON, 304
-5%
-4%
13720_50__SIC/SIC__VITON__304
Garniture mécanique R-BT-RN3 50, SIC/SIC, VITON, 304
-4%
13721_22__CAR/SIC__VITON__304__CL
Garniture mécanique R-BT-RN3.NU 22, CAR/SIC, VITON, 304, CL
-4%
-4%
-5%
13721_43__SIC/SIC__EPDM__304
Garniture mécanique R-BT-RN3.NU 43, SIC/SIC, EPDM, 304
-5%
-5%
13720_10__SIC/SIC__VITON__304

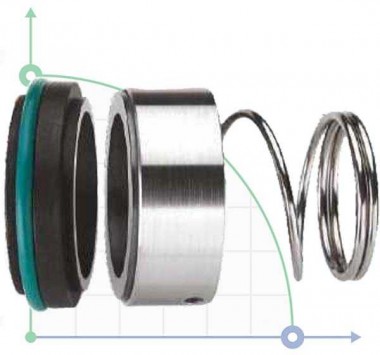

Garniture mécanique R-BT-RN3 10, SIC/SIC, VITON, 304
-5%
13720_100__SIC/SIC__VITON__304
Garniture mécanique R-BT-RN3 100, SIC/SIC, VITON, 304
-5%
13720_12__SIC/SIC__VITON__304
Garniture mécanique R-BT-RN3 12, SIC/SIC, VITON, 304
-6%
13720_14__SIC/SIC__VITON__304
Garniture mécanique R-BT-RN3 14, SIC/SIC, VITON, 304
-5%
13720_16__SIC/SIC__VITON__304
Garniture mécanique R-BT-RN3 16, SIC/SIC, VITON, 304
-5%
13720_18__SIC/SIC__VITON__304
Garniture mécanique R-BT-RN3 18, SIC/SIC, VITON, 304
