R-109/R-8U

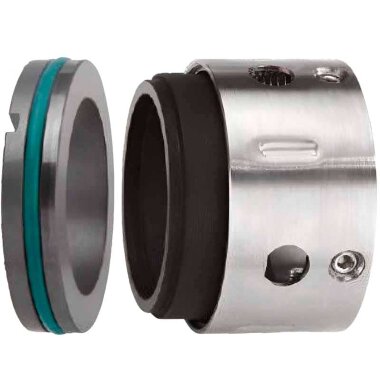

Торцевое уплотнение R-109/8U
Температура: -40°~200°
Давление: ≤2.4 МПа
Скорость: ≤25 м/сек
Материалы
- Вращающееся кольцо: Carbon/SIC
- Неподвижное кольцо: SIC/TC
- Сильфон: EPDM/VITON/PTFE
- Пружина: SS304 / SS316.
- Металлические части: SS304 / SS316.
Одинарное торцевое уплотнение R-109/8U. Торцевые уплотнение даной серий имеют компактную структуру и высокую стойкость к агрессивным средам. Аналог торцевых уплотнений: John Crane 109, 8-1, Asseal.

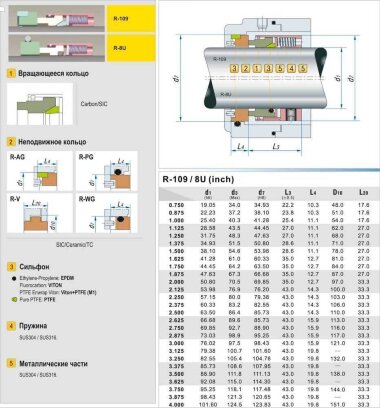

| d1 (H6) | d3 (Max) | d7 (h8) | L3 (±0.5) | L4 | D10 (h8) | L20 | |
| 0.750 | 19.05 | 34.0 | 34.93 | 22.2 | 10.3 | 48.0 | 17.6 |
| 0.875 | 22.23 | 37.2 | 38.10 | 23.8 | 10.3 | 51.0 | 17.6 |
| 1.000 | 25.40 | 40.3 | 41.28 | 25.4 | 11.1 | 54.0 | 17.6 |
| 1.125 | 28.58 | 43.5 | 44.45 | 27.0 | 11.1 | 62.0 | 27.0 |
| 1.250 | 31.75 | 48.3 | 47.63 | 27.0 | 11.1 | 68.0 | 27.0 |
| 1.375 | 34.93 | 51.5 | 50.80 | 28.6 | 11.1 | 71.0 | 27.0 |
| 1.500 | 38.10 | 54.6 | 53.98 | 28.6 | 11.1 | 78.0 | 27.0 |
| 1.625 | 41.28 | 61.0 | 60.33 | 35.0 | 12.7 | 81.0 | 27.0 |
| 1.750 | 44.45 | 64.2 | 63.50 | 35.0 | 12.7 | 84.0 | 27.0 |
| 1.875 | 47.63 | 67.3 | 66.68 | 35.0 | 12.7 | 87.0 | 27.0 |
| 2.000 | 50.80 | 70.5 | 69.85 | 35.0 | 12.7 | 97.0 | 33.3 |
| 2.125 | 53.98 | 76.9 | 76.20 | 43.0 | 14.3 | 100.0 | 33.3 |
| 2.250 | 57.15 | 80.0 | 79.38 | 43.0 | 14.3 | 103.0 | 33.3 |
| 2.375 | 60.33 | 83.2 | 82.55 | 43.0 | 14.3 | 106.0 | 33.3 |
| 2.500 | 63.50 | 86.4 | 85.73 | 43.0 | 14.3 | 110.0 | 33.3 |
| 2.625 | 66.68 | 89.6 | 85.73 | 43.0 | 15.9 | 113.0 | 33.3 |
| 2.750 | 69.85 | 92.7 | 88.90 | 43.0 | 15.9 | 116.0 | 33.3 |
| 2.875 | 73.03 | 98.9 | 95.25 | 43.0 | 15.9 | 117.0 | 33.3 |
| 3.000 | 76.02 | 97.5 | 98.43 | 43.0 | 15.9 | 121.0 | 33.3 |
| 3.125 | 79.38 | 100.7 | 101.60 | 43.0 | 19.8 | - | 33.3 |
| 3.250 | 82.55 | 105.4 | 104.78 | 43.0 | 19.8 | 132.0 | 33.3 |
| 3.375 | 85.73 | 108.6 | 107.95 | 43.0 | 19.8 | - | 33.3 |
| 3.500 | 88.90 | 111.8 | 111.13 | 43.0 | 19.8 | 138.0 | 33.3 |
| 3.625 | 92.08 | 115.0 | 114.30 | 43.0 | 19.8 | - | 33.3 |
| 3.750 | 95.25 | 118.1 | 117.48 | 43.0 | 19.8 | 144.0 | 33.3 |
| 3.875 | 98.43 | 121.3 | 120.65 | 43.0 | 19.8 | - | 33.3 |
| 4.000 | 101.60 | 124.5 | 123.83 | 43.0 | 19.8 | 151.0 | 33.3 |
