R-MFL WT80
Garniture mécanique R-MFL WT80
Température: -20°~400°
Pression: ≤2.5MPa
Vitesse: ≤15m/s
Matériaux
- Anneau tournant: Carbone/SIC /TC
- Anneau fixe: SIC /SUS /TC
- Soufflets: M6 /T6
- Ressort: SS304/ SS316
- Pièces métalliques: SS304/ SS316

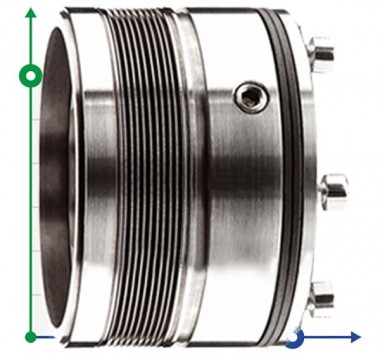

Garniture mécanique R-MFL WT80 avec soufflet métallique soudé. Utilisé dans les pompes : Lowara, Ebara, EMU, Flugt, Fristam, GEA Tuchenhagen, Goetze, etc. Garniture mécanique équivalente : Burgmann MBS100, MFLWT 80, MFLCT.

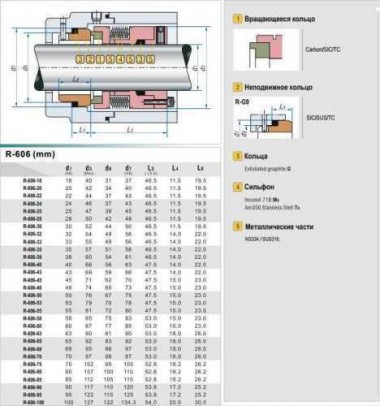

| d1 (H6) | d3 (maximum) | d6(h8) | d7 (±0,5) | L3 | L4(h8) | L8 |
| 18 | 40 | 31 | 37 | 46,5 | 11.5 | 19.5 |
| 20 | 42 | 34 | 40 | 46,5 | 11.5 | 19.5 |
| 22 | 44 | 37 | 43 | 46,5 | 11.5 | 19.5 |
| 24 | 46 | 37 | 43 | 46,5 | 11.5 | 19.5 |
| 25 | 47 | 39 | 45 | 46,5 | 11.5 | 19.5 |
| 28 | 50 | 42 | 48 | 46,5 | 11.5 | 19.5 |
| trente | 52 | 44 | 50 | 46,5 | 11.5 | 19.5 |
| 32 | 54 | 49 | 56 | 46,5 | 14.0 | 22,0 |
| 33 | 55 | 49 | 56 | 46,5 | 14.0 | 22,0 |
| 35 | 57 | 51 | 58 | 46,5 | 14.0 | 22,0 |
| 38 | 60 | 54 | 61 | 46,5 | 14.0 | 22,0 |
| 40 | 66 | 56 | 63 | 47,5 | 14.0 | 22,0 |
| 43 | 69 | 59 | 66 | 47,5 | 14.0 | 22,0 |
| 45 | 71 | 62 | 70 | 47,5 | 15,0 | 23,0 |
| 48 | 74 | 65 | 73 | 47,5 | 15,0 | 23,0 |
| 50 | 76 | 67 | 75 | 47,5 | 15,0 | 23,0 |
| 53 | 79 | 70 | 78 | 47,5 | 15,0 | 23,0 |
| 55 | 81 | 72 | 80 | 47,5 | 15,0 | 23,0 |
| 58 | 85 | 75 | 83 | 53,0 | 15,0 | 23,0 |
| 60 | 87 | 77 | 85 | 53,0 | 15,0 | 23,0 |
| 63 | 90 | 81 | 90 | 53,0 | 18.0 | 26,0 |
| 65 | 92 | 83 | 92 | 53,0 | 18.0 | 26,0 |
| 68 | 95 | 88 | 97 | 53,0 | 18.0 | 26,0 |
| 70 | 97 | 88 | 97 | 53,0 | 18.0 | 26,0 |
| 75 | 102 | 95 | 105 | 52,8 | 18.2 | 26.2 |
| 80 | 107 | 100 | 110 | 52,8 | 18.2 | 26.2 |
| 85 | 112 | 105 | 115 | 52,8 | 18.2 | 26.2 |
| 90 | 117 | 110 | 120 | 53,8 | 17.2 | 25.2 |
| 95 | 122 | 115 | 125 | 53,8 | 17.2 | 25.2 |
| 100 | 127 | 122 | 134.3 | 54,0 | 20,0 | 30,0 |
Sort by:
-4%
13702_100__CAR/SIC__PTFE__316
Garniture mécanique R-MFL WT80 100, CAR/SIC, PTFE, 316
-5%
13702_18__CAR/SIC__PTFE__316
Garniture mécanique R-MFL WT80 18, CAR/SIC, PTFE, 316
-5%
13702_20__CAR/SIC__PTFE__316
Garniture mécanique R-MFL WT80 20, CAR/SIC, PTFE, 316
-5%
13702_22__CAR/SIC__PTFE__316
Garniture mécanique R-MFL WT80 22, CAR/SIC, PTFE, 316
-4%
13702_24__CAR/SIC__PTFE__316
Garniture mécanique R-MFL WT80 24, CAR/SIC, PTFE, 316
-5%
13702_25__CAR/SIC__PTFE__316
Garniture mécanique R-MFL WT80 25, CAR/SIC, PTFE, 316
-4%
13702_28__CAR/SIC__PTFE__316
Garniture mécanique R-MFL WT80 28, CAR/SIC, PTFE, 316
-5%
13702_30__CAR/SIC__PTFE__316
Garniture mécanique R-MFL WT80 30, CAR/SIC, PTFE, 316
-5%
13702_32__CAR/SIC__PTFE__316
Garniture mécanique R-MFL WT80 32, CAR/SIC, PTFE, 316
-5%
13702_33__CAR/SIC__PTFE__316
Garniture mécanique R-MFL WT80 33, CAR/SIC, PTFE, 316
-5%
13702_35__CAR/SIC__PTFE__316
Garniture mécanique R-MFL WT80 35, CAR/SIC, PTFE, 316
-5%
13702_38__CAR/SIC__PTFE__316
Garniture mécanique R-MFL WT80 38, CAR/SIC, PTFE, 316
-5%
13702_40__CAR/SIC__PTFE__316
Garniture mécanique R-MFL WT80 40, CAR/SIC, PTFE, 316
-5%
13702_43__CAR/SIC__PTFE__316
Garniture mécanique R-MFL WT80 43, CAR/SIC, PTFE, 316
-5%
13702_45__CAR/SIC__PTFE__316
Garniture mécanique R-MFL WT80 45, CAR/SIC, PTFE, 316
-5%
13702_48__CAR/SIC__PTFE__316
Garniture mécanique R-MFL WT80 48, CAR/SIC, PTFE, 316
-5%
13702_50__CAR/SIC__PTFE__316
Garniture mécanique R-MFL WT80 50, CAR/SIC, PTFE, 316
-5%
13702_53__CAR/SIC__PTFE__316
Garniture mécanique R-MFL WT80 53, CAR/SIC, PTFE, 316
-4%
13702_55__CAR/SIC__PTFE__316
Garniture mécanique R-MFL WT80 55, CAR/SIC, PTFE, 316
-4%
13702_58__CAR/SIC__PTFE__316
Garniture mécanique R-MFL WT80 58, CAR/SIC, PTFE, 316
-4%
13702_60__CAR/SIC__PTFE__316
Garniture mécanique R-MFL WT80 60, CAR/SIC, PTFE, 316
-5%
13702_63__CAR/SIC__PTFE__316
Garniture mécanique R-MFL WT80 63, CAR/SIC, PTFE, 316
-5%
13702_65__CAR/SIC__PTFE__316
Garniture mécanique R-MFL WT80 65, CAR/SIC, PTFE, 316
-5%
13702_68__CAR/SIC__PTFE__316
Garniture mécanique R-MFL WT80 68, CAR/SIC, PTFE, 316
-5%
13702_70__CAR/SIC__PTFE__316
Garniture mécanique R-MFL WT80 70, CAR/SIC, PTFE, 316
-5%
13702_75__CAR/SIC__PTFE__316
Garniture mécanique R-MFL WT80 75, CAR/SIC, PTFE, 316
-4%
13702_80__CAR/SIC__PTFE__316
Garniture mécanique R-MFL WT80 80, CAR/SIC, PTFE, 316
-4%
13702_85__CAR/SIC__PTFE__316
Garniture mécanique R-MFL WT80 85, CAR/SIC, PTFE, 316
-4%
13702_90__CAR/SIC__PTFE__316
Garniture mécanique R-MFL WT80 90, CAR/SIC, PTFE, 316
-4%
13702_95__CAR/SIC__PTFE__316
Garniture mécanique R-MFL WT80 95, CAR/SIC, PTFE, 316
